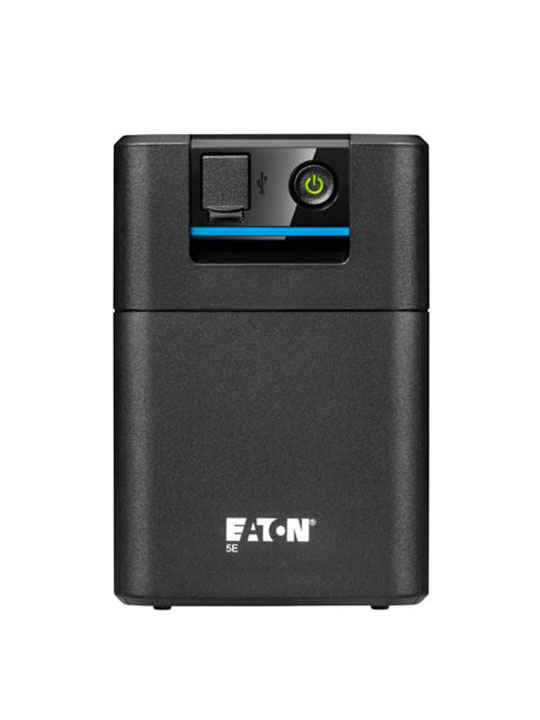

Eaton Gen2 Line Interactive Smart UPS 1600VA/960W, Automatic Voltage Regulation, AVR Technology, USB Connectivity, Tower Design – 5E 1600i USB-BS

Technical Description Power Capacity: 1600VA/960W output capacity with line-interactive topology featuring AVR booster/fader technology. Input Specifications: Wide input voltage range 165-285V, frequency 50-60Hz auto-select, single-phase configuration with Australian 10A connection. Output Performance: 220-240V regulated output voltage, 50-60Hz frequency, pure sine wave or simulated sine wave output (model dependent) Battery System: Sealed lead-acid maintenance-free batteries with typical 3-5 year service life, hot-swappable in some models. Runtime Performance: 3-9 minutes runtime at full load, extended runtime at partial loads (up to 15 minutes at 50% load) Protection Features: Surge protection, EMI/RFI filtering, overvoltage/undervoltage protection, overload protection, and short circuit protection. Communication Interfaces: USB port for monitoring software, RS-232 serial port (model dependent), SNMP capability for network management. Data Line Protection: Telephone/network line surge protection for modem, fax, and Ethernet connections up to 10/100 Mbps Physical Dimensions: Approximately 250mm H x 87mm W x 382mm D, weight around 11kg, tower/desktop form factor. Environmental Operating Conditions: 0-40°C operating temperature, 0-95% humidity (non-condensing), altitude up to 3000m. Compliance Standards: CE, FCC, UL certifications, IEC 62040 safety standards, Energy Star qualified for efficiency. Management Software: Compatible with Eaton Intelligent Power Manager software for advanced monitoring and automated shutdown. Warranty Coverage: 2-year manufacturer warranty including batteries, with optional extended service plans available. Transfer Time: Typical 2-6ms transfer time to battery power, ensuring seamless protection for sensitive equipment.
